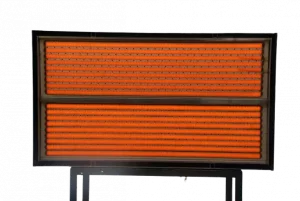

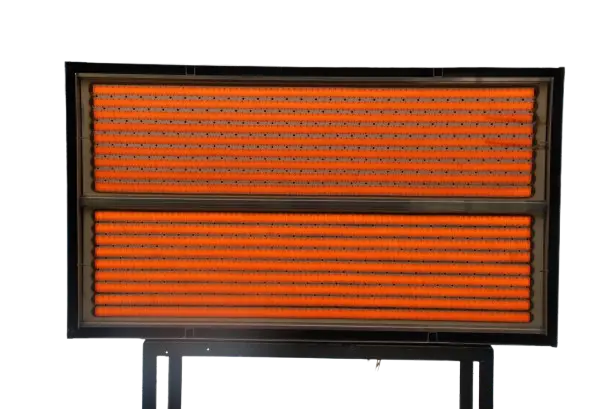

• Rugged stamped foil element strips are mounted on a high temperature insulation board. The energy freely radiates to the product without any quartz or ceramic to block the energy, allowing an up to 90% conversion of electrical power input to useable radiant output, eliminating thermal lag for very tight process control, and minimizing stored heat which causes damage to products on shutdown.
• SF heaters have a peak wavelength of 2 microns and can be designed for up to 30 watts per square inch. They heat up and cool down in 10 to 20 seconds and can be equipped with Type K thermocouple or a non-contact Pyrometer
• Our industrial IR panel heaters are ruggedly constructed with no glass or quartz. They can last to 20,000 hours or more and can be easily repaired. They can be mounted in any orientation and they are available with multiple zones within a module upon request.
• Available in a wide variety of sizes, voltages, and power outputs to suit any application.
• All Stamped Foil heating elements are manufactured in-house according to high standards.
• Fast Lead Times with standard designs and parts kept in stock.
|
Parameter
|
Details
|
|---|---|
|
Emitter Temperature
|
480°C - 925°C (900°F - 1,700°F) Wavelength: 2 - 5 microns
|
|
Maximum Size
|
2.5m long x 0.3m wide (93 inch long x 12 inch wide)
|
|
Watt Density Range
|
20-30 Watts/in²
|
|
Voltage
|
240V or 480V; 1 or 3 phase
|
|
Feedback
|
Thermocouple type "K" or infrared thermometer (IRT)
|
|
Mounting
|
Threaded studs on back; mountable in any position
|
|
Heat Up / Cool Down Speed
|
Heats up and cools down in 10 to 20 seconds
|
|
Feature
|
Benefit
|
|---|---|
|
Rugged construction with no quartz or glass
|
20,000+ hours service life
|
|
Higher watt density
|
Provides higher radiant output
|
|
Response
|
Fast response is suitable for many applications
|
|
Refractory backing
|
25 mm (1 inch) thick to reduce thermal loss
|
|
Stainless steel screen in front
|
Safe for operators
|
|
Flat precision stamped alloy foil elements
|
Precise uniformity of heat onto the product
|
|
HEATER
|
VOLTAGE
|
PHASE
|
HEATED LENGTH
|
CASE LENGTH
|
WIDTH
|
HEIGHT
|
W/in2
|
kW
|
AMPS
|
|---|---|---|---|---|---|---|---|---|---|
|
SF-24-3-480
|
480
|
THREE
|
30"
|
33"
|
12"
|
4.5"
|
27.5
|
10.9
|
22.9
|
|
SF-36-3-480
|
480
|
THREE
|
42"
|
45"
|
12"
|
4.5"
|
22.4
|
12.1
|
25.3
|
|
SF-48-3-480
|
480
|
THREE
|
54"
|
57"
|
12"
|
4.5"
|
26.8
|
18.3
|
22.1
|
|
SF-60-3-480
|
480
|
THREE
|
66"
|
69"
|
12"
|
4.5"
|
28.0
|
23.2
|
27.9
|
|
SF-72-3-480
|
480
|
THREE
|
78"
|
81"
|
12"
|
4.5"
|
26.2
|
25.5
|
30.7
|
|
SF-84-3-480
|
480
|
THREE
|
90"
|
93"
|
12"
|
4.5"
|
25.0
|
27.9
|
33.5
|
|
HEATER
|
VOLTAGE
|
PHASE
|
HEATED LENGTH
|
CASE LENGTH
|
WIDTH
|
HEIGHT
|
W/in2
|
kW
|
AMPS
|
|---|---|---|---|---|---|---|---|---|---|
|
SF-12-1-480
|
480
|
SINGLE
|
18"
|
21"
|
12"
|
4.5"
|
24.2
|
6.1
|
12.7
|
|
SF-24-1-480
|
480
|
SINGLE
|
30"
|
33"
|
12"
|
4.5"
|
23.5
|
9.3
|
19.3
|
|
SF-36-1-480
|
480
|
SINGLE
|
42"
|
45"
|
12"
|
4.5"
|
25.2
|
13.6
|
28.3
|
|
SF-48-1-480
|
480
|
SINGLE
|
54"
|
57"
|
12"
|
4.5"
|
23.8
|
16.3
|
34
|
|
SF-60-1-480
|
480
|
SINGLE
|
66"
|
69"
|
12"
|
4.5"
|
28.0
|
23.2
|
48.3
|
|
HEATER
|
VOLTAGE
|
PHASE
|
HEATED LENGTH
|
CASE LENGTH
|
WIDTH
|
HEIGHT
|
W/in2
|
kW
|
AMPS
|
|---|---|---|---|---|---|---|---|---|---|
|
SF-24-3-240
|
240
|
THREE
|
30"
|
33"
|
12"
|
4.5"
|
27.0
|
10.7
|
25.7
|
|
SF-36-3-240
|
240
|
THREE
|
42"
|
45"
|
12"
|
4.5"
|
27.6
|
14.9
|
35.9
|
|
SF-48-3-240
|
240
|
THREE
|
54"
|
57"
|
12"
|
4.5"
|
26.8
|
18.3
|
44.1
|
|
SF-60-3-240
|
240
|
THREE
|
66"
|
69"
|
12"
|
4.5"
|
28.0
|
23.2
|
55.9
|
|
SF-72-3-240
|
240
|
THREE
|
78"
|
81"
|
12"
|
4.5"
|
26.2
|
25.5
|
61.3
|
|
SF-84-3240
|
240
|
THREE
|
90"
|
93"
|
12"
|
4.5"
|
25.0
|
27.9
|
67.1
|
|
HEATER
|
VOLTAGE
|
PHASE
|
HEATED LENGTH
|
CASE LENGTH
|
WIDTH
|
HEIGHT
|
W/in2
|
kW
|
AMPS
|
|---|---|---|---|---|---|---|---|---|---|
|
SF-12-1-240
|
240
|
SINGLE
|
18"
|
21"
|
12"
|
4.5"
|
24.2
|
6.1
|
25.5
|
|
SF-24-1-240
|
240
|
SINGLE
|
30"
|
33"
|
12"
|
4.5"
|
22.7
|
9
|
37.4
|
|
HEATER
|
Thermocouple
|
IR Thermometer
|
|---|---|---|
|
Three Phase, 480V
|
|
|
|
SF12-24-3-480
|
|
|
|
SF12-36-3-480
|
|
|
|
SF12-48-3-480
|
|
|
|
SF12-60-3-480
|
SCP446
|
SCP450
|
|
SF12-72-3-480
|
SCP446
|
SCP450
|
|
SF12-84-3-480
|
SCP446
|
SCP450
|
|
Single Phase, 480V
|
|
|
|---|---|---|
|
SF12-12-1-480
|
SCP322
|
SCP326
|
|
SF12-24-1-480
|
SCP322
|
SCP326
|
|
SF12-36-1-480
|
SCP346
|
SCP350
|
|
SF12-48-1-480
|
SCP346
|
SCP350
|
|
SF12-60-1-480
|
SCP346
|
SCP350
|
|
Three Phase, 240V
|
|
|
|---|---|---|
|
SF12-24-3-240
|
SCP246
|
SCP250
|
|
SF12-36-3-240
|
SCP246
|
SCP250
|
|
SF12-48-3-240
|
SCP246
|
SCP250
|
|
SF12-60-3-240
|
SCP246
|
SCP250
|
|
SF12-72-3-240
|
|
|
|
SF12-84-3-240
|
|
|
|
Single Phase, 240V
|
|
|
|---|---|---|
|
SF12-12-1-240
|
SCP122
|
SCP126
|
|
SF12-24-1-240
|
SCP146
|
SCP150
|
|
HEATER
|
WEB WIDTH
|
PHASE
|
VOLTAGE
|
HEATED LENGTH
|
CASE LENGTH
|
WIDTH
|
HEIGHT
|
LIST PRICE
|
|---|---|---|---|---|---|---|---|---|
|
SF-24-3-480
|
24"
|
THREE
|
480
|
30"
|
33"
|
12"
|
4.5"
|
$4,085
|
|
SF-36-3-480
|
36"
|
THREE
|
480
|
42"
|
45"
|
12"
|
4.5"
|
$4,470
|
|
SF-48-3-480
|
48"
|
THREE
|
480
|
54"
|
57"
|
12"
|
4.5"
|
$5,104
|
|
SF-60-3-480
|
60"
|
THREE
|
480
|
66"
|
69"
|
12"
|
4.5"
|
$5,489
|
|
SF-72-3-480
|
72"
|
THREE
|
480
|
78"
|
81"
|
12"
|
4.5"
|
$5,941
|
|
SF-72-3-480
|
84"
|
THREE
|
480
|
90"
|
93"
|
12"
|
4.5"
|
$6,326
|
|
HEATER
|
WEB WIDTH
|
PHASE
|
VOLTAGE
|
HEATED LENGTH
|
CASE LENGTH
|
WIDTH
|
HEIGHT
|
LIST PRICE
|
|---|---|---|---|---|---|---|---|---|
|
SF-12-1-480
|
12"
|
SINGLE
|
480
|
18"
|
21"
|
12"
|
4.5"
|
$3,700
|
|
SF-24-1-480
|
24"
|
SINGLE
|
480
|
30"
|
33"
|
12"
|
4.5"
|
$4,085
|
|
SF-36-1-480
|
36"
|
SINGLE
|
480
|
42"
|
45"
|
12"
|
4.5"
|
$4,470
|
|
SF-48-1-480
|
48"
|
SINGLE
|
480
|
54"
|
57"
|
12"
|
4.5"
|
$5,104
|
|
SF-60-1-480
|
60"
|
SINGLE
|
480
|
66"
|
69"
|
12"
|
4.5"
|
$5,489
|
|
HEATER
|
WEB WIDTH
|
PHASE
|
VOLTAGE
|
HEATED LENGTH
|
CASE LENGTH
|
WIDTH
|
HEIGHT
|
LIST PRICE
|
|---|---|---|---|---|---|---|---|---|
|
SF-24-3-240
|
24"
|
THREE
|
240
|
30"
|
33"
|
12"
|
4.5"
|
$4,085
|
|
SF-36-3-240
|
36"
|
THREE
|
240
|
42"
|
45"
|
12"
|
4.5"
|
$4,470
|
|
SF-48-3-240
|
48"
|
THREE
|
240
|
54"
|
57"
|
12"
|
4.5"
|
$5,104
|
|
SF-60-3-240
|
60"
|
THREE
|
240
|
66"
|
69"
|
12"
|
4.5"
|
$5,489
|
|
SF-72-3-240
|
72"
|
THREE
|
240
|
78"
|
81"
|
12"
|
4.5"
|
$5,941
|
|
SF-84-3-240
|
84"
|
THREE
|
240
|
90"
|
93"
|
12"
|
4.5"
|
$6,326
|
|
HEATER
|
WEB WIDTH
|
PHASE
|
VOLTAGE
|
HEATED LENGTH
|
CASE LENGTH
|
WIDTH
|
HEIGHT
|
LIST PRICE
|
|---|---|---|---|---|---|---|---|---|
|
SFA-12-1-240
|
12"
|
SINGLE
|
240
|
18"
|
21"
|
12"
|
4.5"
|
$3,700
|
|
SFA-24-1-240
|
24"
|
SINGLE
|
240
|
30"
|
33"
|
12"
|
4.5"
|
$4,085
|
|
HEATER
|
WEB WIDTH
|
PHASE
|
VOLTAGE
|
HEATED LENGTH
|
CASE LENGTH
|
WIDTH
|
HEIGHT
|
LIST PRICE
|
|---|---|---|---|---|---|---|---|---|
|
SFA-24-3-480
|
24"
|
THREE
|
480
|
30"
|
33"
|
12"
|
4.5"
|
$5,323
|
|
SFA-36-3-480
|
36"
|
THREE
|
480
|
42"
|
45"
|
12"
|
4.5"
|
$5,959
|
|
SFA-48-3-480
|
48"
|
THREE
|
480
|
54"
|
57"
|
12"
|
4.5"
|
$6,736
|
|
SFA-60-3-480
|
60"
|
THREE
|
480
|
66"
|
69"
|
12"
|
4.5"
|
$7,284
|
|
SFA-72-3-480
|
72"
|
THREE
|
480
|
78"
|
81"
|
12"
|
4.5"
|
$7,897
|
|
SFA-84-3-480
|
84"
|
THREE
|
480
|
90"
|
93"
|
12"
|
4.5"
|
$8,444
|
|
HEATER
|
WEB WIDTH
|
PHASE
|
VOLTAGE
|
HEATED LENGTH
|
CASE LENGTH
|
WIDTH
|
HEIGHT
|
LIST PRICE
|
|---|---|---|---|---|---|---|---|---|
|
SFA-12-1-480
|
12"
|
SINGLE
|
480
|
18"
|
21"
|
12"
|
4.5"
|
$4,863
|
|
SFA-24-1-480
|
24"
|
SINGLE
|
480
|
30"
|
33"
|
12"
|
4.5"
|
$5,323
|
|
SFA-36-1-480
|
36"
|
SINGLE
|
480
|
42"
|
45"
|
12"
|
4.5"
|
$5,959
|
|
SFA-48-1-480
|
48"
|
SINGLE
|
480
|
54"
|
57"
|
12"
|
4.5"
|
$6,736
|
|
SFA-60-1-480
|
60"
|
SINGLE
|
480
|
66"
|
69"
|
12"
|
4.5"
|
$7,284
|
|
HEATER
|
WEB WIDTH
|
PHASE
|
VOLTAGE
|
HEATED LENGTH
|
CASE LENGTH
|
WIDTH
|
HEIGHT
|
LIST PRICE
|
|---|---|---|---|---|---|---|---|---|
|
SFA-24-3-240
|
24"
|
THREE
|
240
|
30"
|
33"
|
12"
|
4.5"
|
$5,323
|
|
SFA-36-3-240
|
36"
|
THREE
|
240
|
42"
|
45"
|
12"
|
4.5"
|
$5,959
|
|
SFA-48-3-240
|
48"
|
THREE
|
240
|
54"
|
57"
|
12"
|
4.5"
|
$6,736
|
|
SFA-60-3-240
|
60"
|
THREE
|
240
|
66"
|
69"
|
12"
|
4.5"
|
$7,284
|
|
SFA-72-3-240
|
72"
|
THREE
|
240
|
78"
|
81"
|
12"
|
4.5"
|
$7,897
|
|
SFA-84-3-240
|
84"
|
THREE
|
240
|
90"
|
93"
|
12"
|
4.5"
|
$8,444
|
|
HEATER
|
WEB WIDTH
|
PHASE
|
VOLTAGE
|
HEATED LENGTH
|
CASE LENGTH
|
WIDTH
|
HEIGHT
|
LIST PRICE
|
|---|---|---|---|---|---|---|---|---|
|
SFA-12-1-240
|
12"
|
SINGLE
|
240
|
18"
|
21"
|
12"
|
4.5"
|
$4,863
|
|
SFA-24-1-240
|
24"
|
SINGLE
|
240
|
30"
|
33"
|
12"
|
4.5"
|
$5,323
|
We are always interested in discussing your application and how we can help you. Message us through the form below and someone will promptly respond to your inquiry.
Notes:
• Standard SF control panels have no provisions for
blowers
• 60A maximum feed for standard control panels
• Standard IRT has range of 0 to 350°C, Spectral
Range of 7 to 18µ, Opcal Resoluon of 4:1,
Emissivity fixed at 0.95.
• Standard Digital Temperature Controller has closed
loop PID and % output control
• Standard SCR Power controller is Phase Angle Fired.
